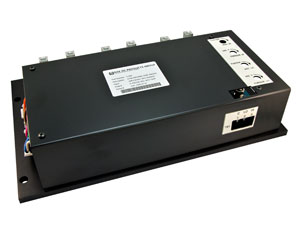

D196 15 HP AC Soft-Start Torque Controller (AVF2060)
Item # S-400
The D196 is a very rugged three phase AC controller designed to provide variable voltage between the incoming AC power line and a single or two speed AC motor. Two separate control channels and four independent adjustments provide the initial starting torque and the rate of acceleration to single or dual motor windings. The D196 provides consistent performance regardless of load. All digital control circuit with AC feedback provides a smooth start with zero drift and repeat accuracy. Oversized power components provide years of trouble-free operation. Simple operation and requires only six external connections.
Available in voltages to 208/220 VAC and ratings up to 15 HP. Descriptive manuals and hookups included.
Downloads
Specifications
| Voltage (AC) | 208/220 V |
| Power Rating | 15hp |
Contact us for more information.
