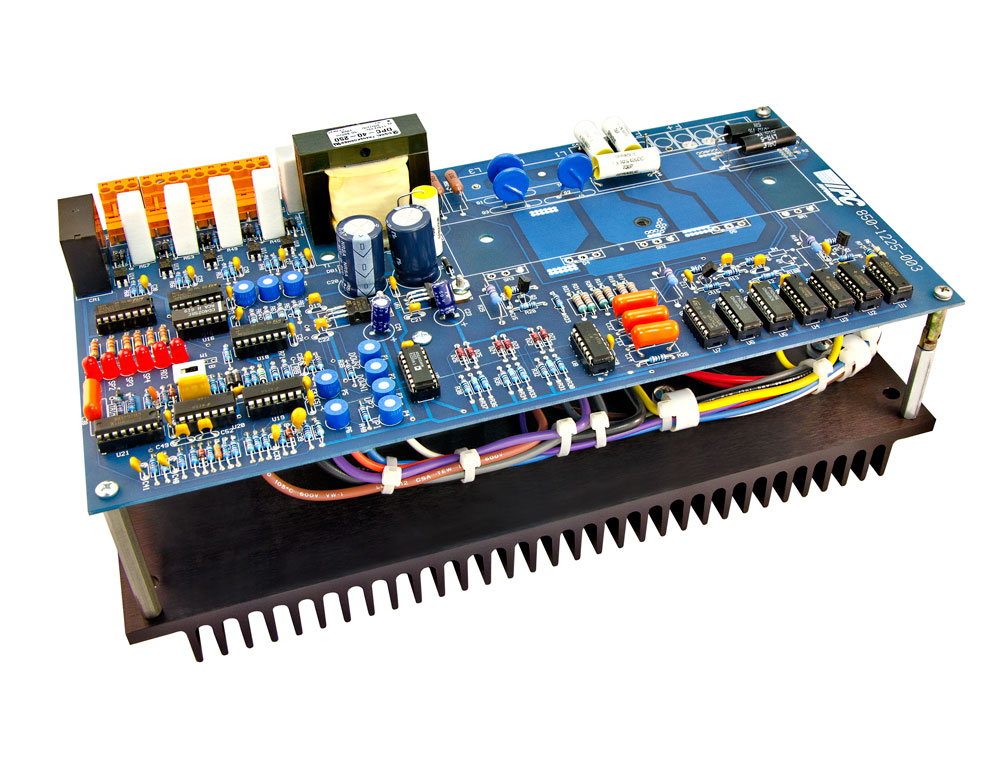

D2130 30 Amp Hoist Motor Field/Brake Control

Item # S-130

The IPC Automation model D2130 offers true three-phase hoist motor field or brake control in a high-power rugged package. The D2130 provides multiple setpoints, separately adjustable ramp-up and ramp-down rates, full status indication and a host of other features designed to make the 2130 an ideal fit for jobs with large fields or brake coils. With the ability to operate in the either the current or voltage regulation modes, the D2130 will maintain precise output settings regardless of changing load impedance, temperature and line-voltage variations. Input interlock circuitry selects the highest numerical order input if all are selected at the same time. Fail-safe current detection safety relay with adjustable setpoint. Soft-start circuit prevents hard starts. Requires a minimum of connections and will easily interface to PLC or relay controllers. 208/230 VAC Input 50/60Hz. Logic inputs-120 VAC or DC Output current -30 amps continuous.

Downloads

Specifications

Input Voltage (AC)	208 V 230 V
Frequency	50/60 Hz
Continuous DC Rating	30 A
