SC-Low Cost SCR Controller

Item # 910-3522-D72

Downloads | Specifications

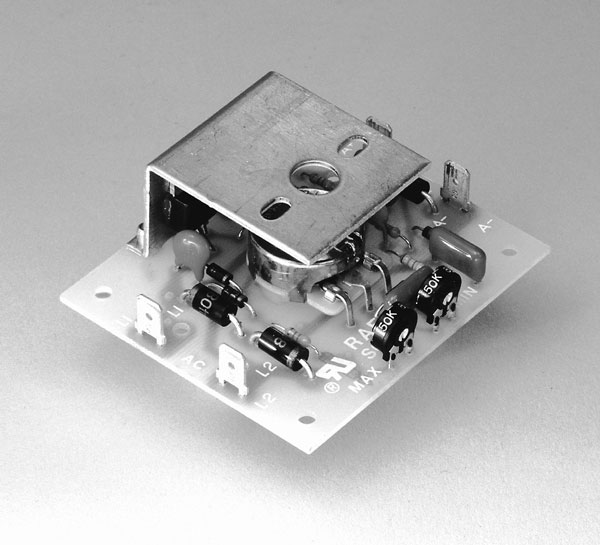

The model SC is a 115 VAC input 0-90 VDC output economical motor controller where good performance at very low cost is desired. The SC is rated for 5 Amps continuos output current and operates in a single direction. On-board potentiometers provide master speed control and smaller potentiometers are available to set min/max speed control limits. Fixed 200% current limit and transient protection round out this small rugged package. Great selection for open frame OEM speed control applications of permanent magnet DC motors.

Downloads

Specifications

Model SC
Input Voltage (AC) 115 V
Output Voltage (DC) 0 to 90 V

Contact us for more information.
