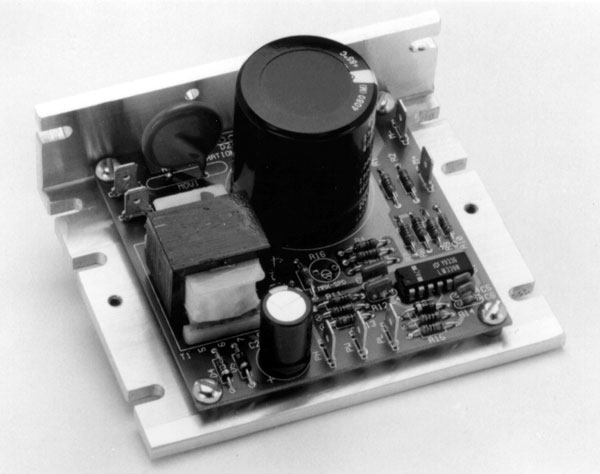

RHV-115VAC Input Variable-Speed DC PWM Motor Speed Control 5A

Item # 910-3522-026

Downloads | Specifications | Features | Typical Applications

The IPC Automation RHV PWM 115 VAC Input, variable-speed PWM output DC drive provides efficient control of permanent magnet motors and gearmotors used in many types of applications and devices for motor operation in a single direction. Incorporating traditional IPC quality in a compact rugged package, the RHV offers smooth and linear acceleration, adjustable maximum speed, automatic current limit and quiet operation in a very compact package.

Uses an external potentiometer for controlling motor speed. Simplified hook-up uses common economical 0.250" "fast-on" connectors. Use of a PWM controller allows increased motor ratings of up to 78% as compared to similar SCR based controller designs.

Downloads

Specifications

Input Voltage (AC)	115 V
Output Voltage (DC)	0 to 130 V
Continuous DC Rating	5 A
Connectors	0.250 "Fast-On"

Features

FET PWM Design
Single Direction Operation
Smooth Linear Acceleration
Adjustable Maximum Speed

Typical Applications

Medical Equipment
Packaging Equipment
Office Equipment
Laboratory Equipment
Conveyor Drives
Food Processing Equipment
Laminators
Blueprint Machines
