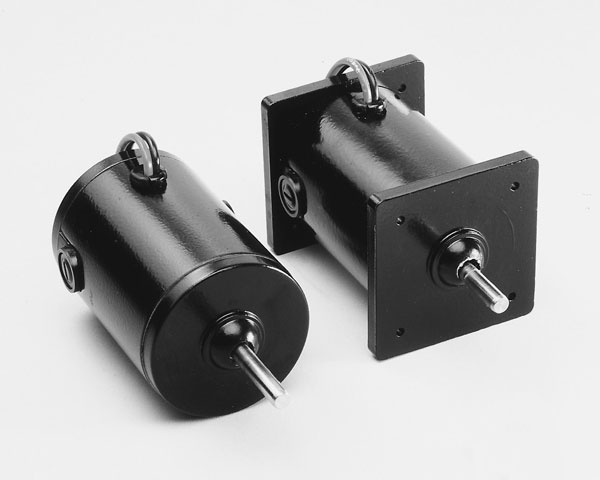

Permanent Magnet DC Motors - M1500 Series

Item # M1503

The M1500 Series Permanent Magnet Motor features a compact 2.250" diameter design that is ideal for applications requiring limited continuous duty torque ratings, yet high starting torques. This product has a wide range of mechanical flexibility.

1/60 hp up to 1/12 hp
Speeds up to 5000 rpm
12 up to 115 VDC
0.250" Maximum Shaft Diameter
0.875" Standard Pilot Diameter
Class "F" Insulation

Downloads

Product Overview

Features

High Energy Ceramic Magnets
Double Shielded Ball Bearings
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Round or Square End Bells
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Optional Sleeve Bearings
Value added options and modifications available

Specifications

Voltage Range	12 up to 115 V
Speed	0 up to 5000 rpm
Continuous Torque DC Rating¹	14.5 in-oz
Continuous Torque SCR Rating	7.5 in-oz
Weight	2.25 lbs
HP Rating	0 up to 1/12

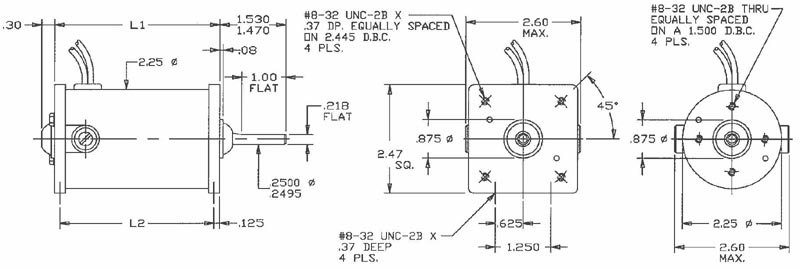

Max. Shaft Diameter	0.250 in.
Standard Pilot Diameter	0.875 in.
L1 M1500	3.782/3.707 in.
L2 M1503	3.512/3.477 in.
Insulation	Class "F"
Lead Length	8 in.
End Bells	Round or Square
Optional Sleeve Bearing	Yes No

¹ DC rating based on 1.00 formfactor; SCR rating based on 1.4 formfactor, 25 Deg. C ambient
