Permanent Magnet DC Motors - M1600 Series

Item # M1605

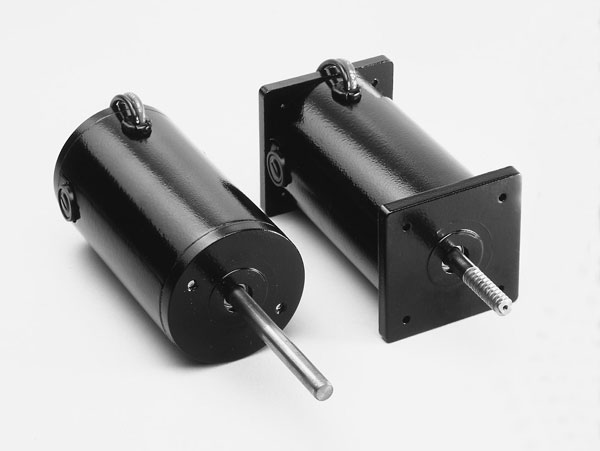

The M1600 Series Permanent Magnet Motor features a compact 2.375" diameter design that provides higher continuous duty torque ratings than the M1500 Series without a dramatic increase in overall length and diameter.

1/30 hp up to 1/8 hp
Speeds up to 5000 rpm
12 up to 115 VDC
0.312" Maximum Shaft Diameter
1.00" Standard Pilot Diameter
Class "F" Insulation

Downloads

Product Overview

Features

High Energy Ceramic Magnets
Double Shielded Ball Bearings
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Round or Square End Bells
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Optional Sleeve Bearings
Value added options and modifications available

Specifications

Voltage Range	12 up to 115 V
Speed	0 up to 5000 rpm
Continuous Torque DC Rating¹	36.5 in-oz
Continuous Torque SCR Rating	18.5 in-oz
Weight	3.25 lbs
HP Rating	0 up to 1/8
Max. Shaft Diameter	0.312 in.
Standard Pilot Diameter	1.00 in.

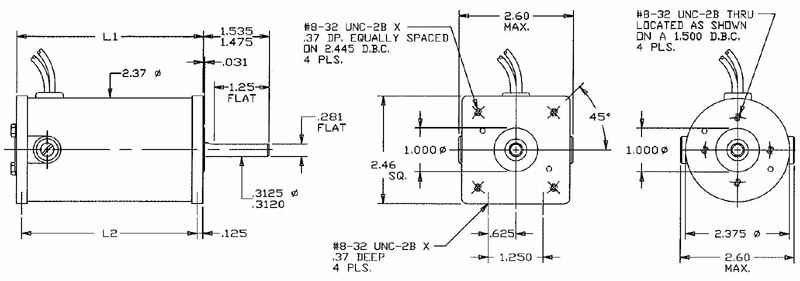

L1 M1500	4.944/4.914 in.
L2 M1503	4.694/4.664 in.
Insulation	Class "F"
Lead Length	8 in.
End Bells	Round or Square
Optional Sleeve Bearing	Yes No

¹ DC rating based on 1.00 formfactor; SCR rating based on 1.4 formfactor, 25 Deg. C ambient
