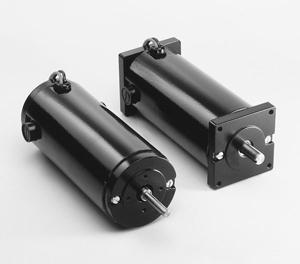

M6000 Series
The M6000 Series Permanent Magnet Motor has been designed to yield more torque than is available on the M4000 Series.
- 1/20 hp up to 1/3 hp
- Speeds up to 3500 rpm
- 12 up to 180 VDC
- 0.500" Maximum Shaft Diameter
- 2.015" Standard Pilot Diameter
- Class "F" Insulation
Products
| Item # | Voltage Range | Continuous Torque DC Rating | Continuous Torque SCR Rating | HP Rating | L1 |
|---|---|---|---|---|---|
| M6030 | 12 up to 180 V | 123.0 in-oz | 63.0 in-oz | 0 up to 1/4 | 6.915/6.860 in. |
| M6040 | 12 up to 180 V | 155.0 in-oz | 79.0 in-oz | 0 up to 1/3 | 7.915/7.860 in. |
