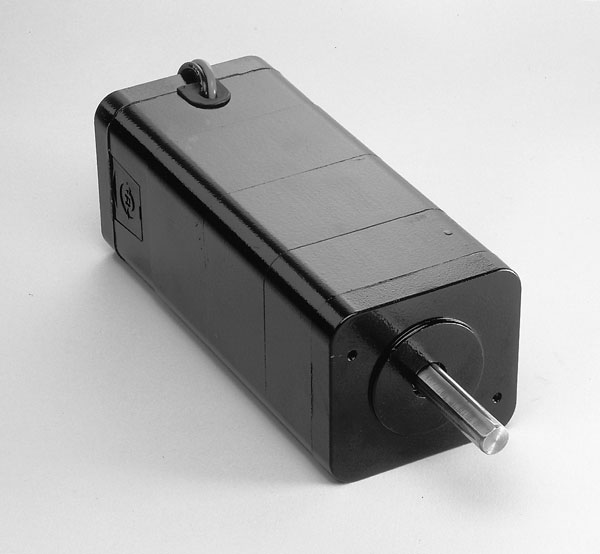

Permanent Magnet DC Motors - OPTI 4000 Series
Item # OPTI 4018
Downloads | Features | Specifications
The OPTI 4000 provides the ultimate combination of design flexibility and performance. The unique rectangular shaped metal yoke yields high output torques in a compact size.
- 1/17 hp up to 1/3 hp
- Speeds up to 3500 rpm
- 12 up to 130 VDC
- 0.500" Maximum Shaft Diameter
- 2.015" Standard Pilot Diameter
- Class "F" Insulation
Downloads
Features
- High Energy Ceramic Magnets
- Double Shielded Ball Bearings
- Dynamically Balanced Armature
- Reversible Design
- 8" Leads
- TENV Design
- Externally Replaceable Brushes
- HIgh Efficiency Rectangular Metal Shell
- Auto-Hook Tang Type Commutator
- Value added options and modifications available
Specifications
| Voltage Range | 12 up to 130 V |
| Speed | 0 up to 3500 rpm |
| Continuous Torque DC Rating1 | 85.0 in-oz |
| Continuous Torque SCR Rating | 43.0 in-oz |
| Weight | 8.10 lbs |
| HP Rating | 0 up to 1/5 |
| Max. Shaft Diameter | 0.500 in. |
| Standard Pilot Diameter | 2.015 in. |

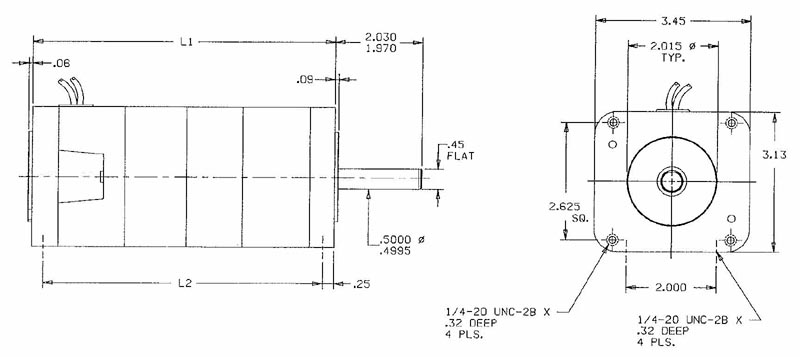

| L1 M1500 | 5.970/5.930 in. |
| L2 M1503 | 5.470/5.430 in. |
| Insulation | Class "F" |
| Lead Length | 8 in. |
1 DC rating based on 1.00 formfactor; SCR rating based on 1.4 formfactor, 25 Deg. C ambient
Contact us for more information.
