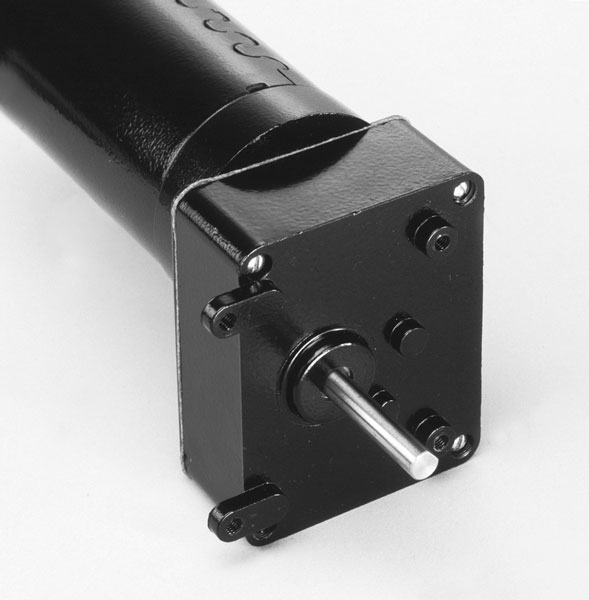

Parallel Shaft Gearmotors - G209 Series

Item # G209

The G209 Series Gearbox, when matched with the appropriate RAE motor, is a versatile parallel shaft, medium torque gearmotor offering long gear life in a reduced noise design. Available in 2,3,4 & 5 stages.

Continuous Duty
Rating up to 50 in- lbs
Speeds up to 350 rpm
12 up to 115 VDC
9.9:1 up to 2328:1 Ratios
0.312" Maximum Shaft Diameter
Class "F" Insulation

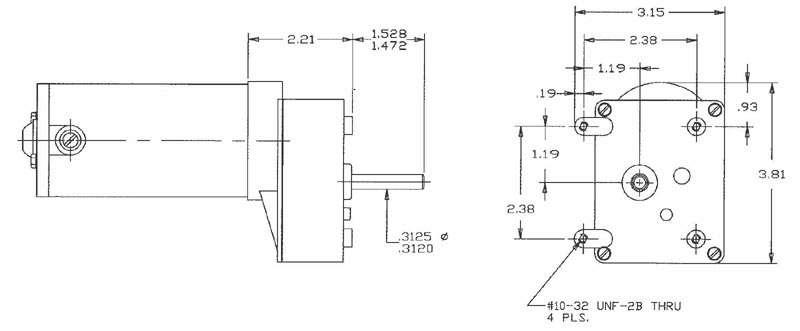

Gearbox dimensions only. Reference appropriate Series for dimension of motor.

Compatible Motors:

The G209 Series may be combined with the M1500 or M1600 Series motor.

Downloads

Product Overview

Features

Grease Lubrication
Sleeve Bearings (Gearbox)
High Energy Ceramic Magnets
Double Shielded Ball Bearings (Motor)
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value Added Options and Modifications Available

Specifications

Torque Rating	0 up to 50 in-lb
Speeds	0 up to 350 rpm
Voltages	12 up to 115 V
Ratios	9.9:1 up to 2328:1
Max. Shaft Diameter	0.312 in.
Insulation	Class "F"
Lead Length	8 in.
No. of Stages	2 3 4 5
