Parallel Shaft Gearmotors - GIL100 Series

Item # GIL100

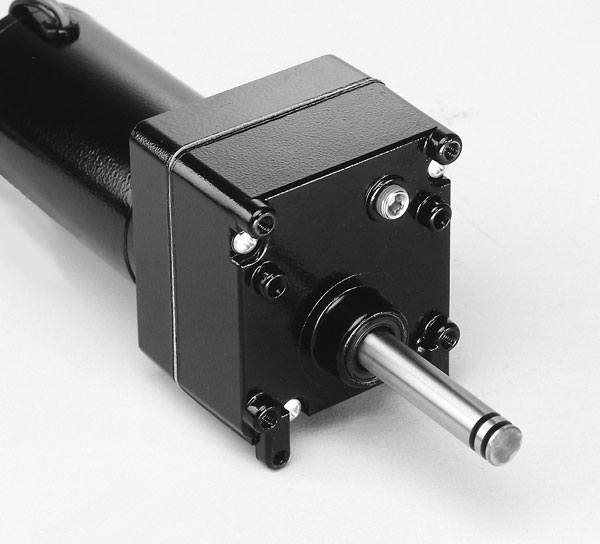

The GIL100 Series Gearbox, when matched with the appropriate RAE motor, is a versatile parallel shaft, medium torque gearmotor offering long gear life in a reduced noise design. Available in 2, 3, 4, & 5 Stages.

Continuous Duty
Rating up to 100 in- lbs
Speeds up to 250 rpm
12 up to 115 VDC
16:1 up to 2474:1 Ratios
0.500" Standard Shaft Diameter
Class "F" Insulation

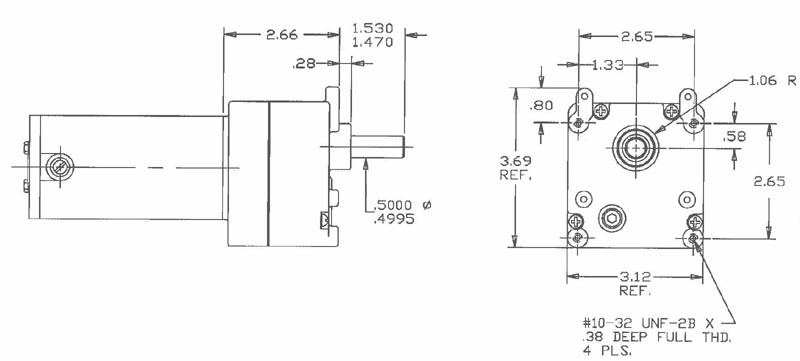

Gearbox dimensions only. Reference appropriate Series for dimension of motor.

Compatible Motors:

The GIL100 Series may be combined with the M1500 or M1600 Series motor.

Downloads

Product Overview

Features

Gearbox Designed to AGMA Standards
Oil Filled
Needle Bearings (Gearbox)
High Energy Ceramic Magnets
Double Shielded Ball Bearings (Motor)
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value Added Options and Modifications Available

Specifications

Torque Rating	0 up to 100 in-lb
Speeds	0 up to 250 rpm
Voltages	12 up to 115 V
Ratios	16:1 up to 2474:1
Max. Shaft Diameter	0.500 in.
Insulation	Class "F"
Lead Length	8 in.
No. of Stages	2 3 4 5
