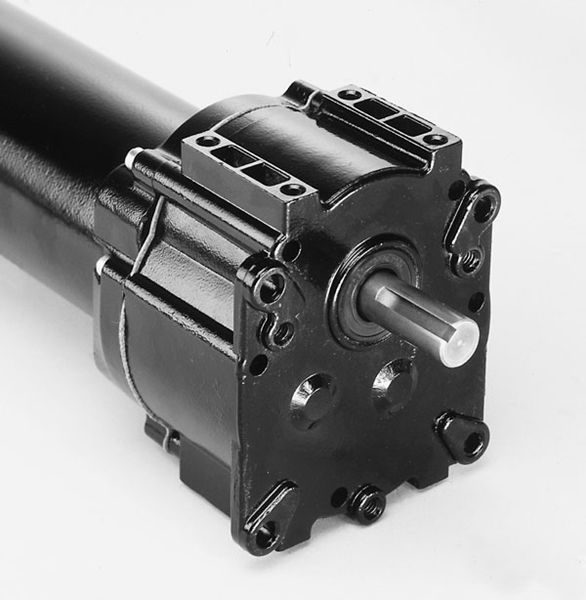

Parallel Shaft Gearmotors - GIL200 Series

Item # GIL200

The GIL200 Series Gearbox, when matched with the appropriate RAE motor, provides high output torque in a compact, rugged diecast parallel shaft gearmotor design. Available in 2 or 3 stages

Continuous Duty
Rating up to 300 in- lbs
Speeds up to 350 rpm
12 up to 180 VDC
1.1:1 up to 232:1 Ratios
0.625" Standard Shaft Diameter
Class "F" Insulation

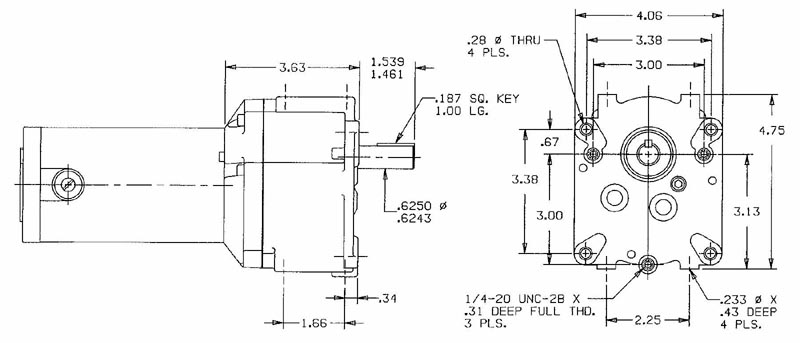

Gearbox dimensions only. Reference appropriate Series for dimension of motor.

Compatible Motors:

The GIL200 Series may be combined with the M1600, M4000, M6000, or Opti 4000 Series motor.

Downloads

Product Overview

Features

Gearbox Designed to AGMA Standards
Oil Lubrication
Needle Bearings (Gearbox)
High Energy Ceramic Magnets
Double Shielded Ball Bearings (Motor)
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value Added Options and Modifications Available

Specifications

Torque Rating	0 up to 300 in-lb
Speeds	0 up to 350 rpm
Voltages	12 up to 180 V
Ratios	11:1 up to 232:1
Max. Shaft Diameter	0.625 in.
Insulation	Class "F"
Lead Length	8 in.
No. of Stages	2 3
