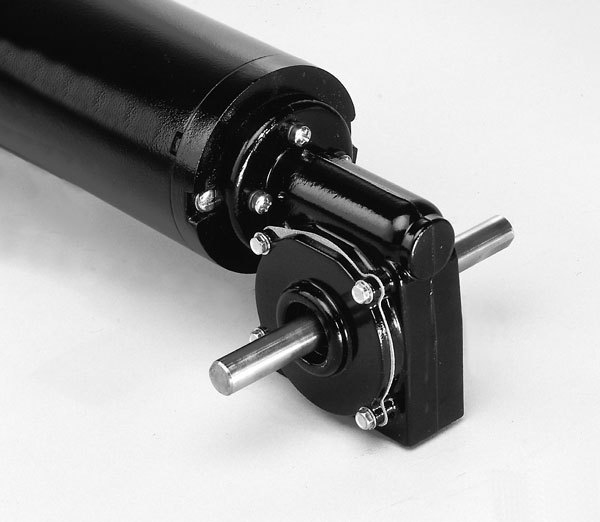

G16 Right Angle Gearmotor

Item # M4100 G16

RAE's oil filled G16 right angle gear train gives you more torque for the buck and brings increased capacity in a compact design. With a continuous duty torque of up to 95 inch pounds, this worm driven gear train can sustain torques higher than most other gear trains of the same size. If your design requires higher capacity in a reduced space, or if your present gear motor is failing prematurely test the oil filled G16. It just may be the answer you have been looking for.

Downloads

Product Overview

Features

High Energy Ceramic Magnets
Double Shielded Ball Bearings
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Round or Square End Bells
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value added options and modifications available

Specifications

Voltage	12 up to 180 V
Speed	0 up to 3500 rpm
Continuous Torque DC Rating	56.0 in-oz
Continuous Torque SCR Rating	28.0 in-oz
Weight	5.30 lbs
HP Rating	0 up to 1/7
Max. Shaft Diameter	0.500 in.
Standard Pilot Diameter	2.015 in.

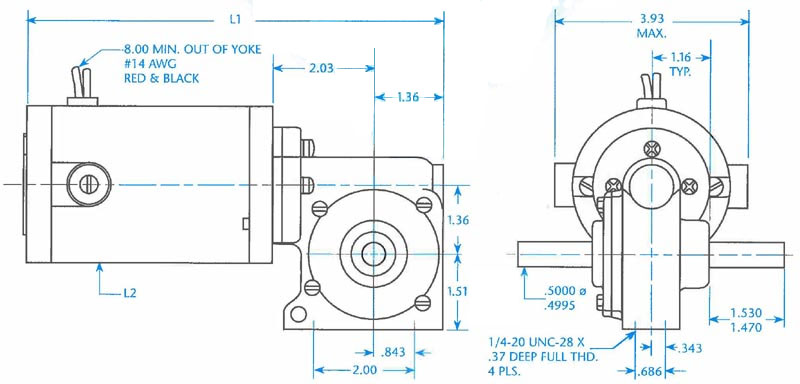

L1	8.308/8.233 in.
L2	3.13 in.
Insulation	Class "F"
Lead Length	8 in.
End Bells	Round or Square
