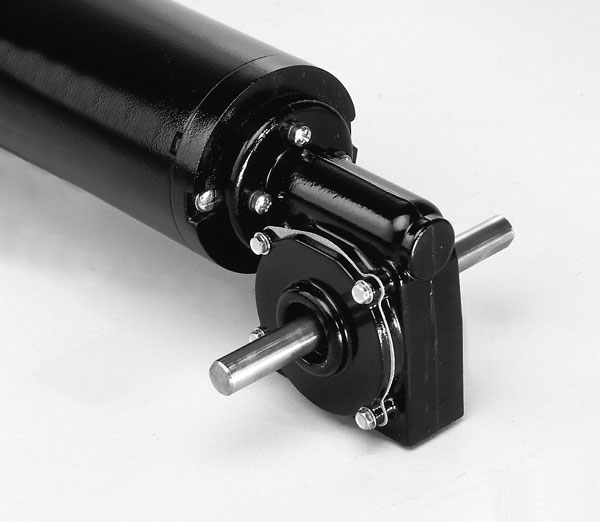

G16 Right Angle Gearmotor

Item # M4300 G16

Downloads | Features | Specifications

RAE's oil filled G16 right angle gear train gives you more torque for the buck and brings increased capacity in a compact design. With a continuous duty torque of up to 95 inch pounds, this worm driven gear train can sustain torques higher than most other gear trains of the same size. If your design requires higher capacity in a reduced space, or if your present gear motor is failing prematurely test the oil filled G16. It just may be the answer you have been looking for.


Downloads

Features

Specifications

Voltage 12 up to 180 V
Speed 0 up to 3500 rpm
Continuous Torque DC Rating 98.0 in-oz
Continuous Torque SCR Rating 50.0 in-oz
Weight 7.80 lbs
HP Rating 0 up to 1/5
Max. Shaft Diameter 0.500 in.
Standard Pilot Diameter 2.015 in.

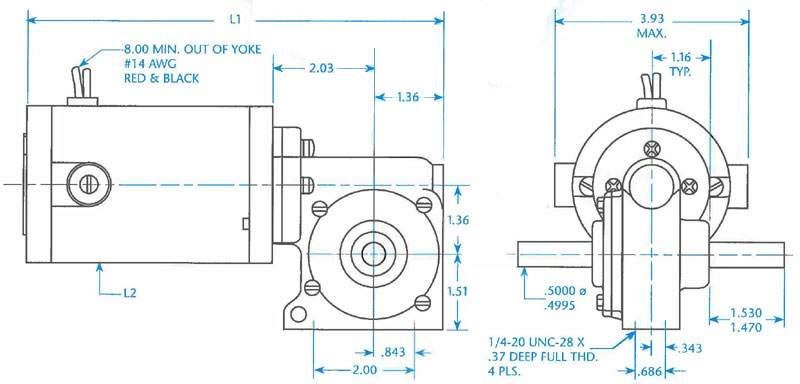

L1 10.308/10.233 in.
L2 3.13 in.
Insulation Class "F"
Lead Length 8 in.
End Bells Round or Square

Contact us for more information.
