Right Angle Gear Box G250 Series

Item # M4100 G250

RAE Corporation has achieved a major breakthrough in design and development of its G250 Right Angle Gearbox. This breakthrough has resulted in a right angle gearbox that has an 80% to 90% efficiency rating very appropriate for applications that require Back Drive.

Bevel gears transmit power from the motor through the gear box more efficiently. This allows higher torques with smaller motors, resulting in savings of power consumption, weight, and total cost.

Downloads

Product Overview

Features

High Energy Ceramic Magnets
Double Shielded Ball Bearings
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Round or Square End Bells
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value added options and modifications available

Specifications

Voltage	12 up to 180 V
Speed	0 up to 3500 rpm
Continuous Torque DC Rating	56.0 in-oz
Continuous Torque SCR Rating	28.0 in-oz
Weight	5.30 lbs
HP Rating	0 up to 1/7
Max. Shaft Diameter	0.500 in.
Standard Pilot Diameter	2.015 in.

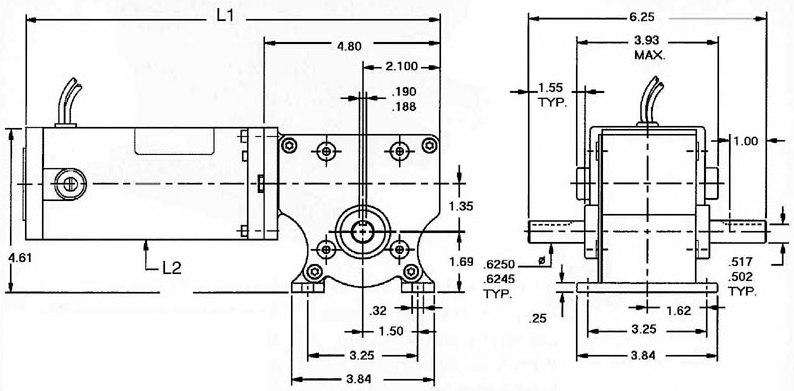

L1	9.705/9.650 in.
L2	3.12 in.
Insulation	Class "F"
Lead Length	8 in.
End Bells	Round or Square
