Right Angle Gearmotors - G33 Series
Item # G33
Downloads | Features | Specifications

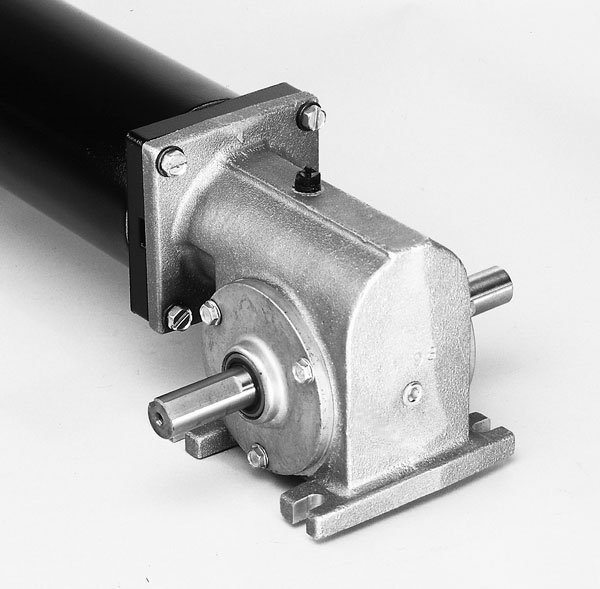

The G33 Series Single Worm Reduction Right Angle Gearbox, when matched with the appropriate RAE motor: is designed for applications requiring high output torques and a dependable, rugged design.
- Continuous Duty
- Rating up to 175 in- lbs
- Speeds up to 500 rpm
- 12 up to 180 VDC
- 5:1 up to 60:1 Ratios
- 0.625" Maximum Shaft Diameter
- Class "F" Insulation

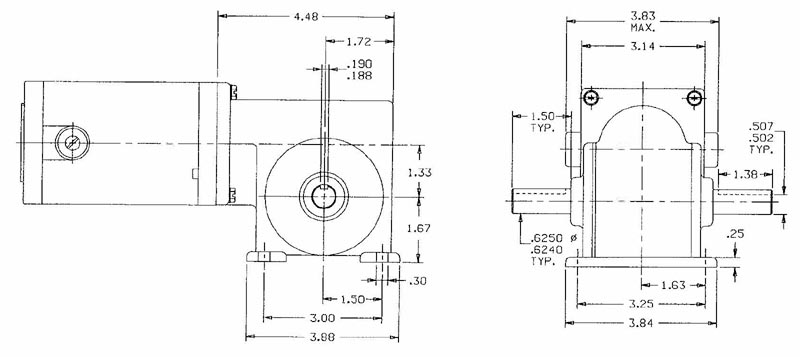

Gearbox dimensions only. Reference appropriate Series for dimension of motor.
Compatible Motors:
The G33 Series may be combined with the M4000, M6000, or Opti 4000 Series motor.
Downloads
Features
- Oil Lubrication Lifetime
- Antifriction Bearings
- Foot Mounting
- High Energy Ceramic Magnets
- Dynamically Balanced Armature
- Externally Replaceable Brushes
- Auto-Hook Tang Type Commutator
- Value Added Options and Modifications Available
Specifications
| Torque Rating | 0 up to 175 in-lb |
| Speeds | 0 up to 500 rpm |
| Voltages | 12 up to 180 V |
| Ratios | 5:1 up to 60:1 |
| Max. Shaft Diameter | 0.625 in. |
| Insulation | Class "F" |
Contact us for more information.
