Right Angle Gearmotors - G4 Series

Item # G4

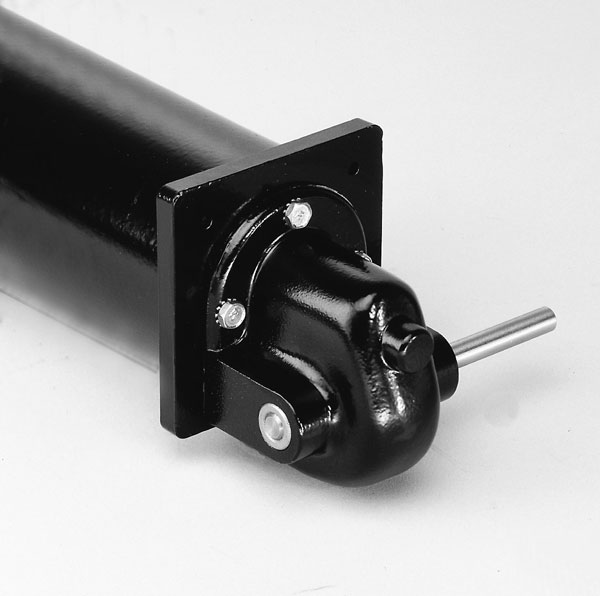

The G4 Series Single Worm Reduction Right Angle Gearbox, when matched with the appropriate RAE motor, is designed for applications requiring low output torque. All metal construction with a Bakelite gear provides quiet operation for noise sensitive applications.

Continuous Duty
Rating up to 7 in- lbs
Speeds up to 400 rpm
12 up to 115 VDC
12:1 up to 47:1 Ratios
0.250" Maximum Shaft Diameter
Class "F" Insulation

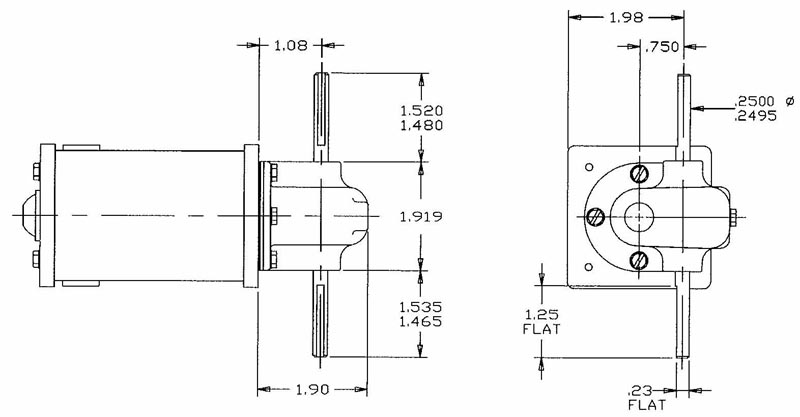

Gearbox dimensions only. Reference appropriate Series for dimension of motor.

Compatible Motors:

The G4 Series may be combined with the M1500 or M1600 Series motor.

Downloads

Product Overview

Features

Grease Lubrication
Sleeve Bearings (Gearbox)
High Energy Ceramic Magnets
Double Shielded Ball Bearings (Motor)
Dynamically Balanced Armature
8" Leads
TENV Design
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value Added Options and Modifications Available

Specifications

Torque Rating	0 up to 7 in-lb
Speeds	0 up to 400 rpm
Voltages	12 up to 115 V
Ratios	12:1 up to 47:1
Max. Shaft Diameter	0.250 in.
Insulation	Class "F"
Lead Length	8 in.
