Right Angle Gearmotors - G7 Series

Item # G7

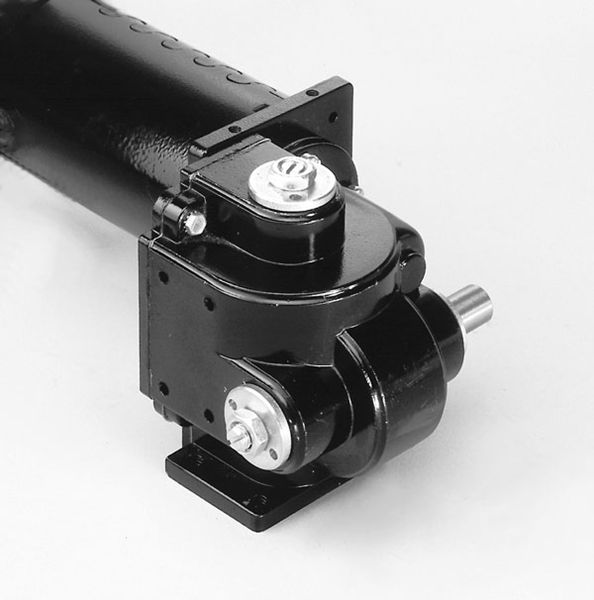

The G7 Series Double Worm Reduction Right Angle Gearbox, when matched with the appropriate RAE motor, is designed for applications requiring moderate output torque at slow output speeds. Durable all metal construction, with Bakelite input and bronze out put gear, provides quiet, slow speed operation.

Continuous Duty
Rating up to 35 in- lbs
Speeds up to 60 rpm
12 up to 115 VDC
84:1 up to 2320:1 Ratios
0.500" Maximum Shaft Diameter
Class "F" Insulation

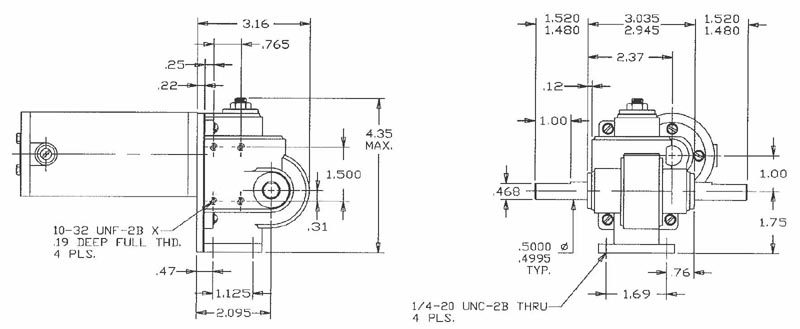

Gearbox dimensions only. Reference appropriate Series for dimension of motor.

Compatible Motors:

The G7 Series may be combined with the M1500 or M1600 Series motor.

Downloads

Product Overview

Features

Grease Lubrication
Sleeve Bearings (Gearbox)
Foot or Side Mounting
High Energy Ceramic Magnets
Double Shielded Ball Bearings (Motor)
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV Design
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value Added Options and Modifications Available

Specifications

Torque Rating	0 up to 35 in-lb
Speeds	0 up to 60 rpm
Voltages	12 up to 115 V
Ratios	64:1 up to 2320:1
Max. Shaft Diameter	0.500 in.
Insulation	Class "F"
Lead Length	8 in.
