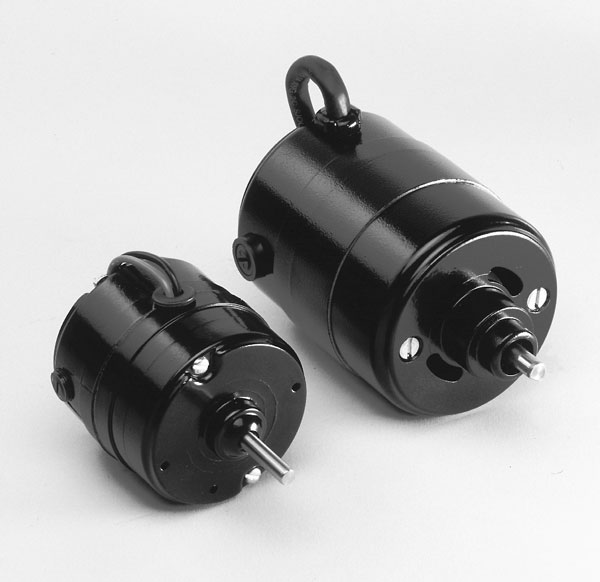

Wound Field Motors M6 & M60 Series

Item # M6

The M6 & M60 Series Wound Field Motor features a versatile design that can be operated on AC or DC input voltages, and can be connected as either a series or shunt wound motor. These series are ideal for AC applications requiring a medium amount of torque in a compact design.

1/60 hp to 1/10 hp
Speeds to 5000 rpm at Load
Speeds to 20000 rpm at No Load
12-230 VAC/VDC
0.312" Maximum Shaft Diameter On M6
Class "A" Insulation

Downloads

Product Overview

Features

Double Shielded Ball Bearings
Dynamically Balanced Armature
Reversible Design
8" Leads
TENV/TEFC Design Available
Externally Replaceable Brushes
Auto-Hook Tang Type Commutator
Value Added Options and Modifications Available

Specifications

Voltage	12 to 230 V
Speed Up To (No Load)¹	0 to 20000 rpm
Speed Up To (Load)	0 to 5000 rpm
Continuous Torque	20 in-oz
Weight	4.2 lbs
HP Rating	0 to 1/10

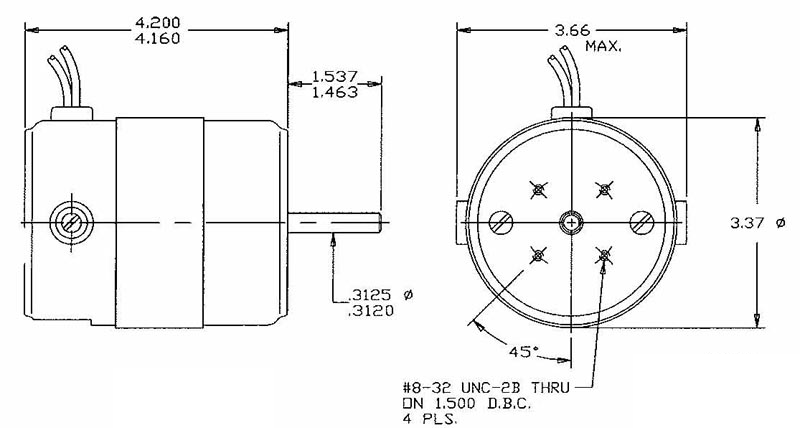

Max. Shaft Diameter	0.312 in.
Insulation	Class "A"

¹ DC rating based on 1.00 formfactor; SCR rating based on 1.4 formfactor, 25 Deg. C ambient
