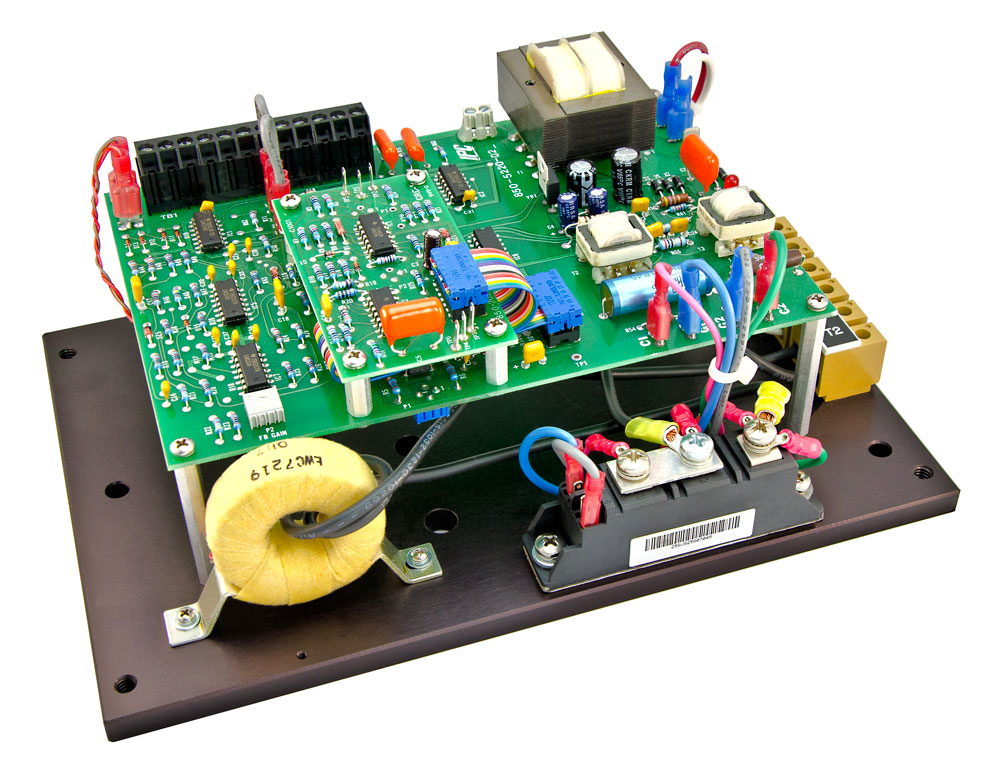

D1000 - 110/230VAC Single Phase SCR Power Controller 30A
Item # 910-5252-021
Downloads | Features | Specifications
The IPC D1000 low cost single-phase SCR power controller offers variable-voltage phase-angle control for a variety of applications. All-digital firing is immune to AC line distortions, RF and noise. These rugged controllers feature many standard features such as soft-start, voltage or current control input, AC or DC output, open or closed-loop operation and a variety of AC or DC feedback options. 4-20 ma current input with offset and bias adjustments. Adjustable current limit. 30 Amp DC continuous rating. (Higher currents or other voltages on request) Small footprint saves valuable space. Simple hookup.
Downloads
Features
- Digital Firing
- Current Limiting and Over current Trip Detection
- Open Loop (no external feedback) or Closed Loop Operation
- Regulation of 1% or better
- Fast Response - 16 milliseconds, Open loop
- On/Off Control Switch
- User Trip Input allows an external source to shut down the control.
Specifications
| Control Voltage | User adjustable from 125 to 250% |
| Input Voltage | 0 to 10 Volts DC, four to 20 ma optional |
| Output Voltage (DC) | 0 to 110/220 Volts AC |
| Current Rating | 30 Amperes Continuous, 90 Amps peak |
| Current Limit | User adjustable from 50 to 100% |
| Overcurrent Trip | User adjustable from 125 to 250% |
Contact us for more information.
