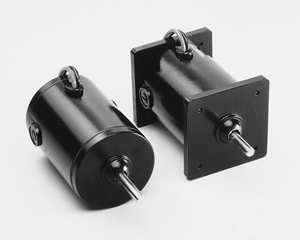

M1500 Series
The M1500 Series Permanent Magnet Motor features a compact 2.250" diameter design that is ideal for applications requiring limited continuous duty torque ratings, yet high starting torques. This product has a wide range of mechanical flexibility.
- 1/60 hp up to 1/12 hp
- Speeds up to 5000 rpm
- 12 up to 115 VDC
- 0.250" Maximum Shaft Diameter
- 0.875" Standard Pilot Diameter
- Class "F" Insulation
Products
| Item # | Voltage Range | Continuous Torque DC Rating | Continuous Torque SCR Rating | HP Rating | L1 | L2 |
|---|---|---|---|---|---|---|
| M1500 | 12 up to 115 V | 10 in-oz | 5.0 in-oz | 0 up to 1/20 | 3.282/3.207 in. | 3.012/2.977 in. |
| M1503 | 12 up to 115 V | 14.5 in-oz | 7.5 in-oz | 0 up to 1/12 | 3.782/3.707 in. | 3.512/3.477 in. |
