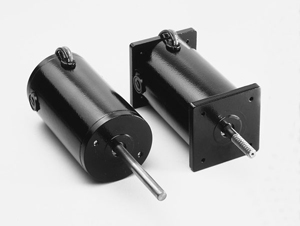

M1600 Series
The M1600 Series Permanent Magnet Motor features a compact 2.375" diameter design that provides higher continuous duty torque ratings than the M1500 Series without a dramatic increase in overall length and diameter.
- 1/30 hp up to 1/8 hp
- Speeds up to 5000 rpm
- 12 up to 115 VDC
- 0.312" Maximum Shaft Diameter
- 1.00" Standard Pilot Diameter
- Class "F" Insulation
Products
| Item # | Voltage Range | Continuous Torque DC Rating | Continuous Torque SCR Rating | HP Rating | L1 | L2 |
|---|---|---|---|---|---|---|
| M1603 | 12 up to 115 V | 30.5 in-oz | 15.5 in-oz | 0 up to 1/10 | 4.444/4.414 in. | 4.194/4.164 in. |
| M1605 | 12 up to 115 V | 36.5 in-oz | 18.5 in-oz | 0 up to 1/8 | 4.944/4.914 in. | 4.694/4.664 in. |
