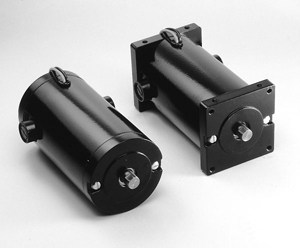

M4000 Series
The M4000 Series Permanent Magnet Motor offers the design engineer a rugged product along with a great deal of design flexibility.
- 1/30 hp up to 1/4 hp
- Speeds up to 3500 rpm
- 12 up to 180 VDC
- 0.500" Maximum Shaft Diameter
- 2.015" Standard Pilot Diameter
- Class "F" Insulation
Products
| Item # | Voltage Range | Continuous Torque DC Rating | Continuous Torque SCR Rating | HP Rating | L1 | L2 |
|---|---|---|---|---|---|---|
| M4100 | 12 up to 180 V | 56.0 in-oz | 28.0 in-oz | 0 up to 1/7 | 4.915/4.860 in. | 4.457/4.382 in. |
| M4000 | 12 up to 180 V | 75.0 in-oz | 38.0 in-oz | 0 up to 1/6 | 5.915/5.860 in. | 5.457/5.382 in. |
| M4300 | 12 up to 180 V | 98.0 in-oz | 50.0 in-oz | 0 up to 1/5 | 6.915/6.860 in. | 6.457/6.382 in. |
| M4400 | 12 up to 180 V | 110.0 in-oz | 56.0 in-oz | 0 up to 1/4 | 7.915/7.860 in. | 7.457/7.382 in. |
