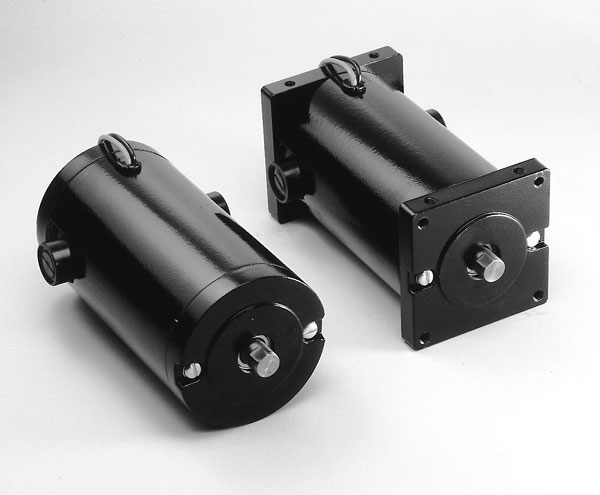

Permanent Magnet DC Motors - M4000 Series
Item # M4400
Downloads | Features | Specifications
The M4000 Series Permanent Magnet Motor offers the design engineer a rugged product along with a great deal of design flexibility.
- 1/30 hp up to 1/4 hp
- Speeds up to 3500 rpm
- 12 up to 180 VDC
- 0.500" Maximum Shaft Diameter
- 2.015" Standard Pilot Diameter
- Class "F" Insulation
Downloads
Features
- High Energy Ceramic Magnets
- Double Shielded Ball Bearings
- Dynamically Balanced Armature
- Reversible Design
- 8" Leads
- TENV Design
- Round or Square End Bells
- Externally Replaceable Brushes
- Auto-Hook Tang Type Commutator
- Value added options and modifications available
Specifications
| Voltage Range | 12 up to 180 V |
| Speed | 0 up to 3500 rpm |
| Continuous Torque DC Rating1 | 110.0 in-oz |
| Continuous Torque SCR Rating | 56.0 in-oz |
| Weight | 9.00 lbs |
| HP Rating | 0 up to 1/4 |

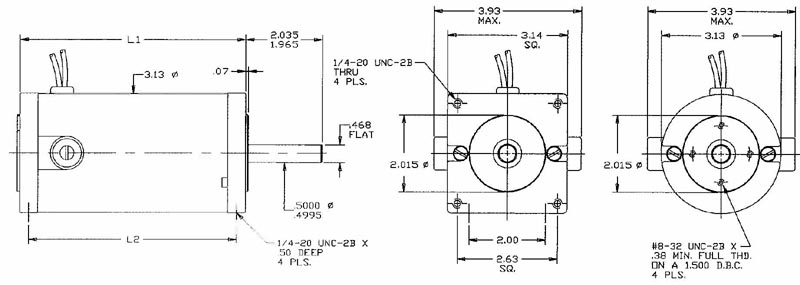

| Max. Shaft Diameter | 0.500 in. |
| Standard Pilot Diameter | 2.015 in. |
| L1 M1500 | 7.915/7.860 in. |
| L2 M1503 | 7.457/7.382 in. |
| Insulation | Class "F" |
| Lead Length | 8 in. |
| End Bells | Round or Square |
1 DC rating based on 1.00 formfactor; SCR rating based on 1.4 formfactor, 25 Deg. C ambient
Contact us for more information.
