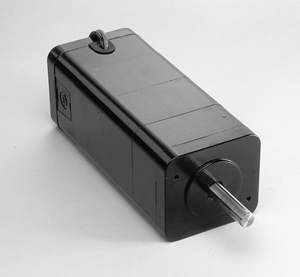

OPTI 4000 Series
The OPTI 4000 provides the ultimate combination of design flexibility and performance. The unique rectangular shaped metal yoke yields high output torques in a compact size.
- 1/17 hp up to 1/3 hp
- Speeds up to 3500 rpm
- 12 up to 130 VDC
- 0.500" Maximum Shaft Diameter
- 2.015" Standard Pilot Diameter
- Class "F" Insulation
Products
| Item # | Voltage Range | Continuous Torque DC Rating | Continuous Torque SCR Rating | HP Rating | L1 | L2 |
|---|---|---|---|---|---|---|
| OPTI 4014 | 12 up to 130 V | 65.0 in-oz | 33.0 in-oz | 0 up to 1/6 | 5.600/5.550 in. | 5.100/5.050 in. |
| OPTI 4018 | 12 up to 130 V | 85.0 in-oz | 43.0 in-oz | 0 up to 1/5 | 5.970/5.930 in. | 5.470/5.430 in. |
| OPTI 4026 | 12 up to 130 V | 120.0 in-oz | 61.0 in-oz | 0 up to 1/4 | 6.850/6.800 in. | 6.350/6.300 in. |
| OPTI 4040 | 12 up to 130 V | 165.0 in-oz | 84.0 in-oz | 0 up to 1/3 | 8.230/8.170 in. | 7.730/7.670 in. |
