Right Angle Gearmotors - G14 Series
Item # G14
Downloads | Features | Specifications

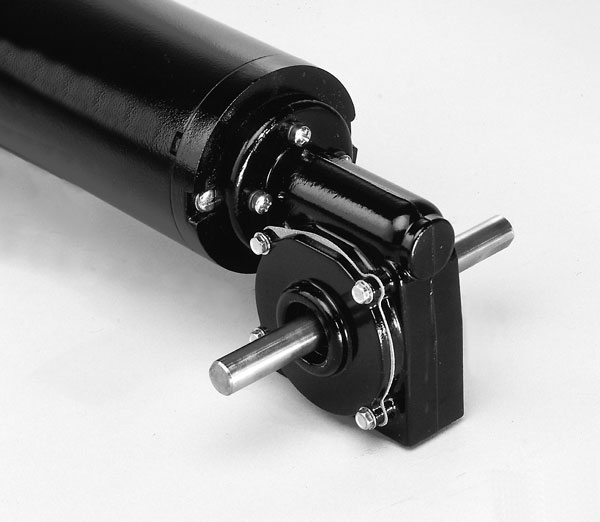

The G14 Series Single Worm Reduction Right Angle Gearbox, when matched with the appropriate RAE motor, is designed for applications requiring high output torque and a dependable, rugged design.
- Continuous Duty
- Rating up to 60 in- lbs
- Speeds up to 350 rpm
- 12 up to 180 VDC
- 8:1 up to 50:1 Ratios
- 0.500" Maximum Shaft Diameter
- Class "F" Insulation

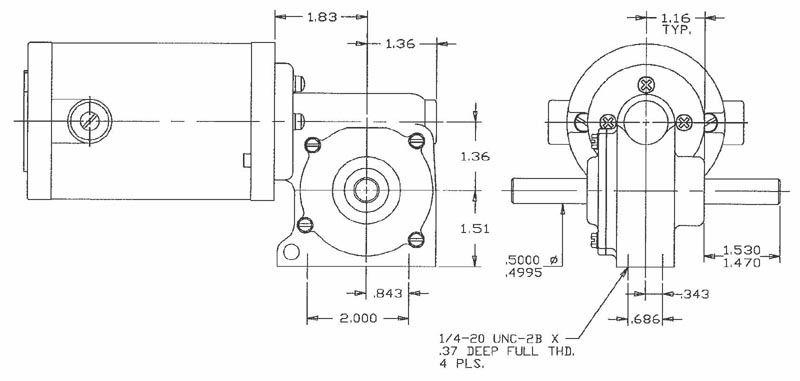

Gearbox dimensions only. Reference appropriate Series for dimension of motor.
Compatible Motors:
The G14 Series may be combined with the M1500, M1600, M4000, M6000, or Opti 4000 Series motor.
Downloads
Features
- Grease Lubrication
- Ball Bearings (Gearbox)
- Foot Mounting
- High Energy Ceramic Magnets
- Double Shielded Ball Bearings (Motor)
- Dynamically Balanced Armature
- Reversible Design
- 8" Leads
- TENV Design
- Externally Replaceable Brushes
- Auto-Hook Tang Type Commutator
- Value Added Options and Modifications Available
- Some Models Available From Stock
Specifications
| Torque Rating | 0 up to 60 in-lb |
| Speeds | 0 up to 350 rpm |
| Voltages | 12 up to 180 V |
| Ratios | 8:1 up to 50:1 |
| Max. Shaft Diameter | 0.500 in. |
| Insulation | Class "F" |
| Lead Length | 8 in. |
Contact us for more information.
